Since established, our company has focused on setting up a technology development team which aims to develop and upgrade technologies to effectively manufacture products. Its uses have been expanded to the field(s) of Natural Baobab Fruit Powder Processing Sieving Machine. Based on Natural Baobab Fruit Powder Processing Sieving Machine properties, we have selected technology to manufacture the product after conducting multiple tests and experiments.Our product is qualified for being used in the application field(s) of fine vibrating screen. Having analyzed the industry dynamics and researched the market development, we ensure our Pulverizer, vibrating mill, vibrating screen, powder mixer, packing machine, conveyor has advantages in both its appearance and performance. It is designed to be of a unique structure and look, making it highly attractive to potential customers. In addition, the features of our Natural Baobab Fruit Powder Processing Sieving Machine makes it more valuable.
| Applicable Industries | Building Material Shops, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company | Showroom Location | None |
| Video outgoing-inspection | Provided | Machinery Test Report | Provided |
| Marketing Type | Hot Product 2019 | Warranty of core components | 1 Year |
| Core Components | Gearbox, Motor | Condition | New |
| Type | Circular | Application | sand/stone/mining/coal and etc separating |
| Place of Origin | Henan, China | Brand Name | Guofeng |
| Voltage | 220V/380V/415V/450V | Dimension(L*W*H) | Vary |
| Weight | 50 KG | Warranty | 12 Months |

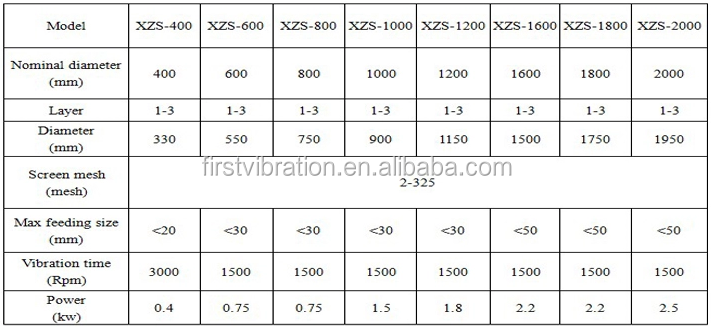

| Screen material | manganese steel/stainless steel | Nominal diameter | 400mm |

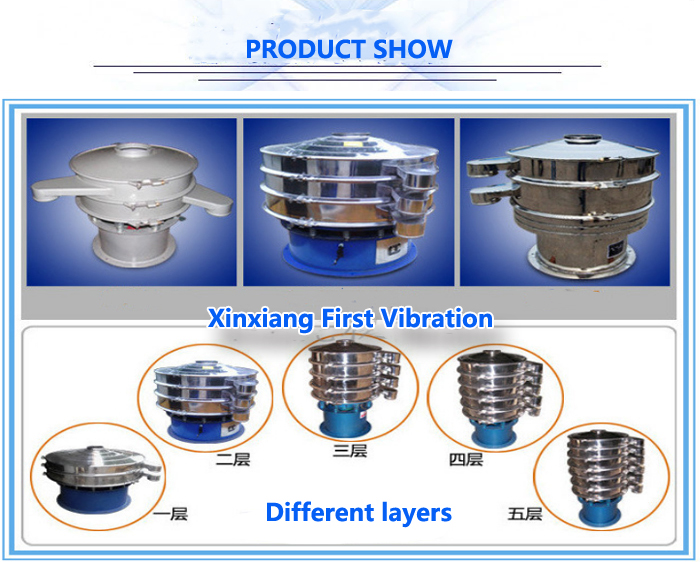

| Layer(s) | 1-3 | Screen mesh | 2-325 |
| Max feeding size | <20-60mm | Frequency | 1500rpm |
| Power | 0.37-3.7kw | Capacity | Meet Requirement |
| Color | Blue,grey and as your willing color | Service | 24hours online sevice for you |
| Local Service Location | None | Certification | CE,ISO,CCC |
natural baobab fruit powder processing sieving machine
 |

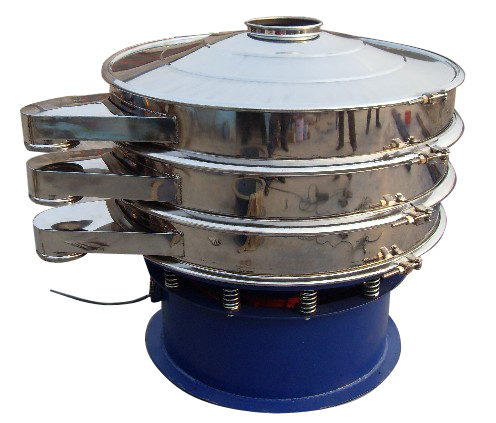

This 3D rotary vibrating screen ,which uses upright motor as the source of vibration ,is suitable for the quick separation and filter of any powder, particle, liquid in the foodstuff,chemical pharmaceutical, grinding, ceramic and metals processing,etc. |

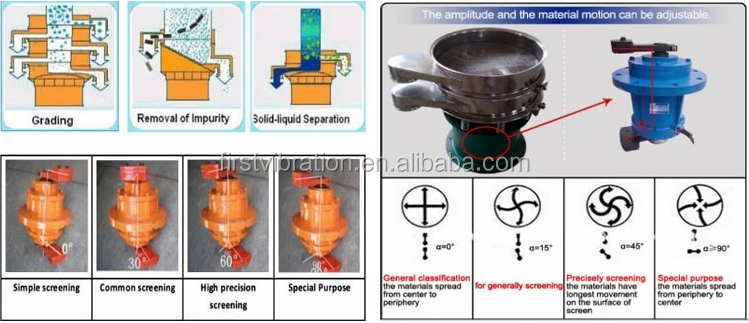

| Its vertical motor, which is installed with eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change the track of rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle between the top and bottom eccentric weight can change trajectories of the materials on the siev |
Many kinds of the materials within 0~400 mesh like dry, wet, refined, coarse, heavy and light as well as those within 0~600 mesh like liquid and pasty materials can be screened by the machines. Details are as follows:
1. Chemical industry: resin, pigment, medicine, grease, extinction agent, rubber and plastic.
2. Abrasive, glass and ceramic professions: silicone sand, aluminum oxide, grinding abrasive, glass dust and fire-proof material.
3. Foodstuff: sugar, salt, alkali, glutamate, starch, powdered milk, soybean milk, yeast and fruit juice.
4. Papermaking profession: coated slurry, black and white liquor, padding fluid, waste liquid and waste water recycling.
5. Iron-smelting and mining industry: quartz sand, ore, titanium oxide and zinc oxide.
6. Mechanical profession: casting sand, powder metallurgy, electromagnetism material, aluminum powder, metal powder and alloy.
7. Environmental protection: trash, human and animal fecaluria, industrial waste water , food waste water and waste water processing.
8. Others: carbon black, activated carbon and pearl.

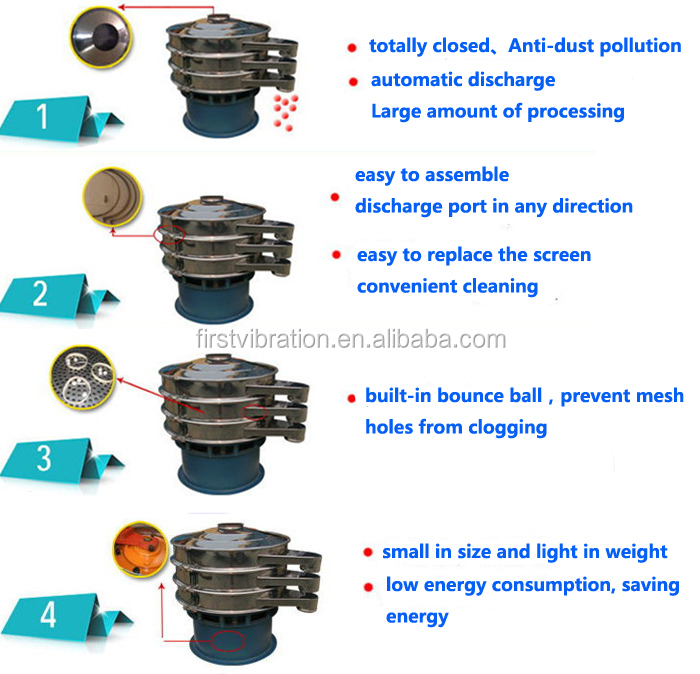

1. High efficiency, compact design and durability.
2. The unique grid design, shorten the time for net works, easy to operate.
3. Full sealing, and no powder overflow,
4. The material discharged automatically, you can work.continuously.
5. Make use of vertical vibration motor, mechanical drive, the transfer process without loss of the exciting force, the effective transfer to the screen surface.
Small size, take up little space, easy to move
Established in 1999,Xinxiang First Vibration Machinery Factory CO.,LTD owns 9.6 million fixed assets, 26000m2 floor area (which including 12600 m2 production workshop), 68 sets of manufacturing equipment, 110 staffs that includes 42 staffs talent professional in vibrating machine manufacturing industry. Relying on professional level, mature technology and high quality, our company rise rapidly in vibration machinery industry.
We are increasingly increasing our intermnational market share based on quality products, excellent services, reasonable prices and timely delivery. Please contact uS at any time for more information.
